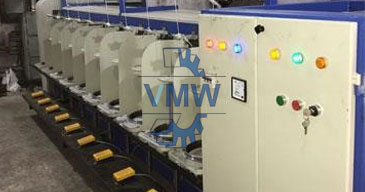

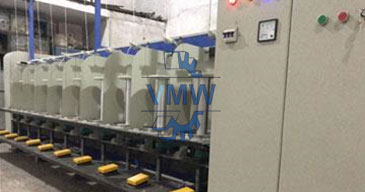

Online Ring Winder Machine
Online Ring Winder Machine
| Model | Denier | No. Of Spindle | Spindle RPM |
| VMW/ORW – 8.5″ | 4000-28000 | 10-20 | 1600-3000 |
| VMW/ORW – 10.5″ | 5000-35000 | 10-20 | 1600-2800 |
| VMW/ORW – 11.25″ | 4000-28000 | 10-20 | 1600-2800 |
| VMW/ORW – 12″ | 5000-35000 | 10-20 | 1200-2200 |
The Online Ring Winder is mainly used in Baler Twine and rope primary twisting for Export Quality and fibers are drawn specifically from the Extruder. This is also used in small denier material and rope with 2-3 mm primary twisting. This will decrease the level of waste and spares Electric Power and Time. Additionally, this machine will replace the utilization of the Bobbin Winder and at the same time users will get minor TPM from the Extrusion Plant.
Available in multiple Spindles with Common motors as per Denier requirements, from small production output to large production output.
Advantage:
- Optimum production
- Less power consumption
- Easy to operate
- Less noisy
- Users can get normal TPM directly in an extruder at the same time, so the productivity is increased.
- An AC drive is provided to set the TPM inline with the extruder.
- Low maintenance as compared to online ring winders as there is an individual motor in the online ring winder.
- Two side operating as this will save space and increase in productivity
Applications:
- Ply twisting for rope
- Heavy denier baller twisting
- Primary and secondary twisting
