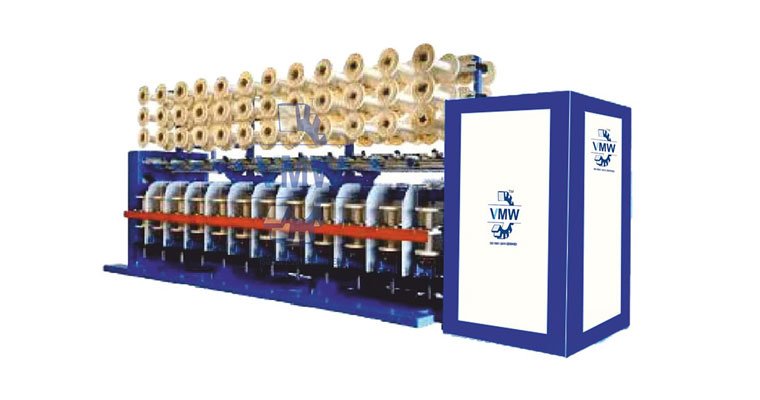

Ring Doubling Combo Machine
Ring Doubling Combo Machine
Ring Doubler combo machine is designed keeping in mind the problems faced by our customers. In this machine we have provided individual gearbox so that the customers can have individual twisting in the same machine. Also we have removed unnecessary weight in the machine by providing plastic moulding parts which increase the parts life and reduces the power consumption as compared to other machines.
Now-a-days, All Rope Industries Are Facing Problem Of Space & Power, So We Had Come Out With Its Solution, Here We Provide Two Different Combination Modes In Ring Twisting
Machine As Primary And Secondary Ring Which Is As Per The Below In Details,
- Primary Of 3.5" Ring And Secondary Of 4.5" Ring
- Primary Of 4.5" Ring And Secondary Of 6.5" Ring
| Model | Denier | No. Of Spindle | Spindle RPM | Total Spin |
| VMW/RDC/ 64 SPIN | 48 | 12 | 64 | |
| VMW/RDC/96SPIN | 72 | 24 | 96 | |
| VMW/RDC/128 SPIN | 96 | 32 | 128 | |
| VMW/RDC/144 SPIN | 108 | 36 | 144 |
The salient features are:
- Effective machine complete design with ready to use structures at your factory no need to assemble again like other Ring Twister machines.
- Optimum production & Easy to operate.
- Two line roller and hard chromium plating.
- Users can change the TPM setting by PLC & HMI control or by AC Drive system instead of manual gear change.
- Uniform counterbalancing.
- Provided with a reversible drive that is mainly used for S or Z twisting.
- Pace-tensioning telescopic jockey pulley.
- Less noisy & less power consumption.
- Best yarn quality & high productivity.
- Complete powder coated heavy duty structure.
Supportable Materials:
Poy, Fdy, Jute, Hdpe, Cotton, Acrylic, Polyster, Fiber Glass, Natural Fibers, Manmade Fibers, Synthetic Fibers, Multifilament Nylone, Monofilament Nylone, P.P. Fiberillated Tapes, Etc....
